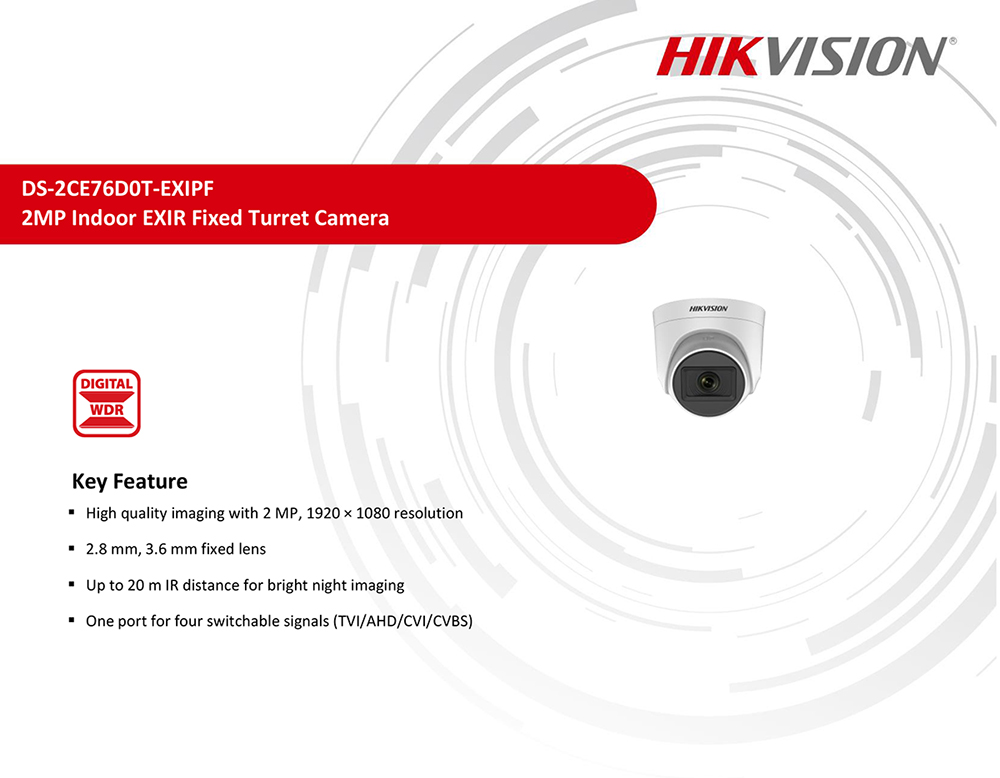

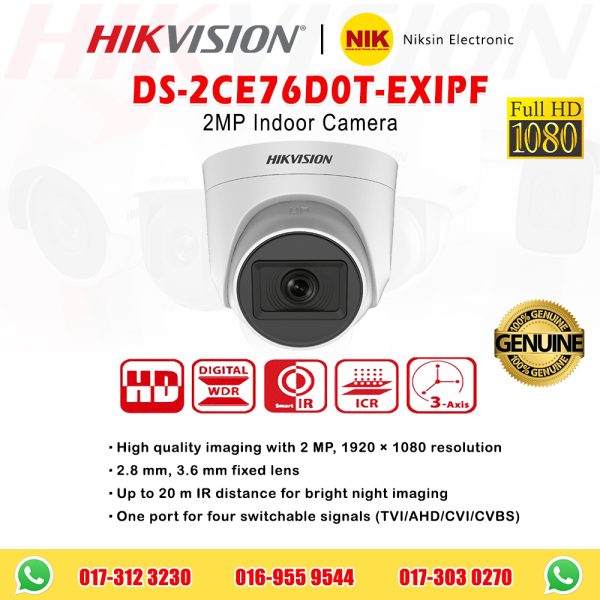

Model: DS-2CE76D0T-EXIPF
• 2 MP, 1920 × 1080 resolution
• 3.6 mm
• 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
• Smart IR, up to 20 m IR distance

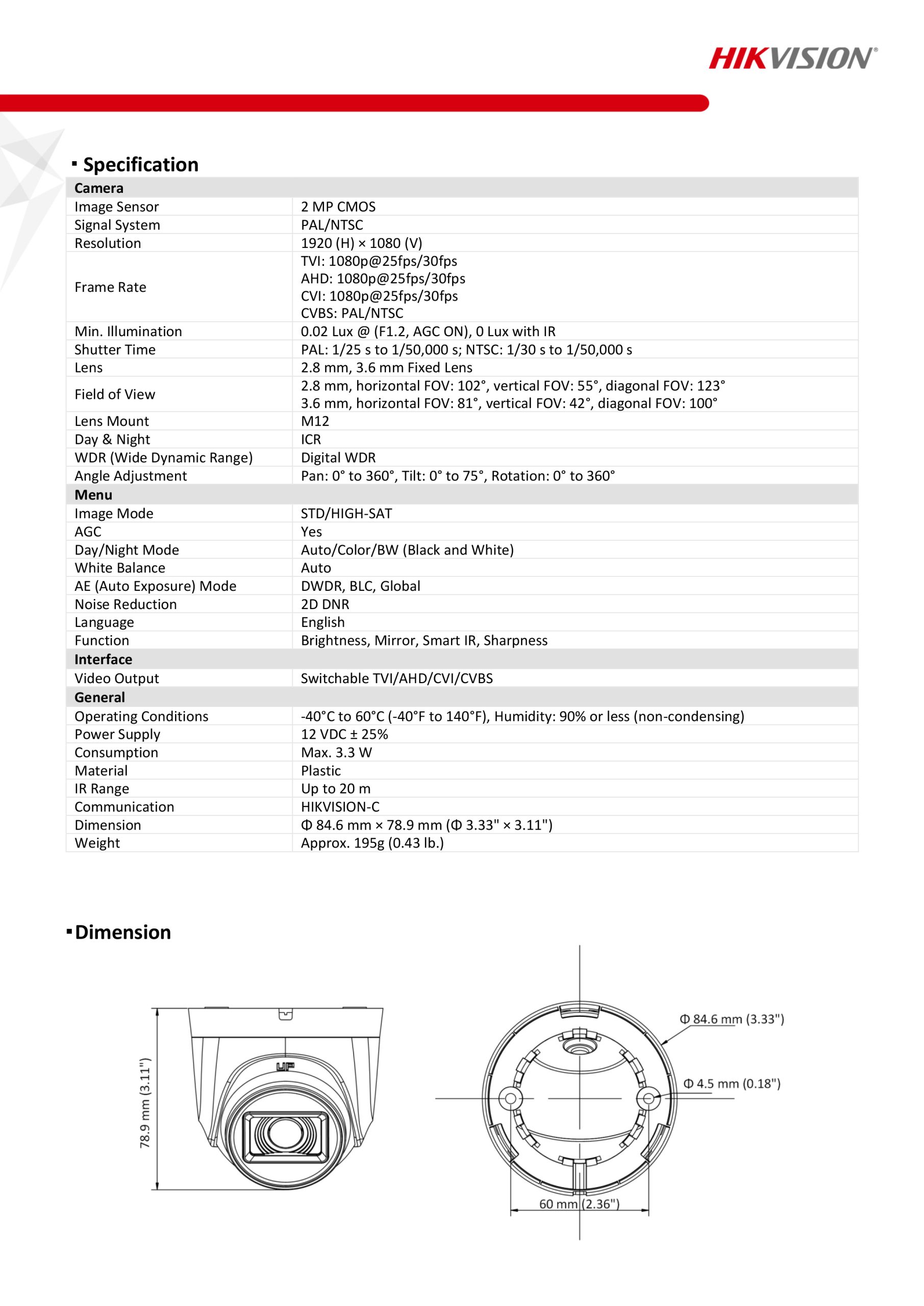

Camera
WDR (Wide Dynamic Range): DWDR
Angle Adjustment:
Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°
Image Sensor: 2MP CMOS Image Sensor
Signal System: PAL/NTSC
Effective Pixels: 1920(H)*1080(V)
Min. Illumination: 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter Time: PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
Lens: 2.8 mm, 3.6 mm, 6 mm fixed lens
Lens Mount: M12
Day& Night: IR cut filter
Video Frame Rate:
TVI: 1080p@30fps, 1080p@25fps, AHD: 1080p@30fps, 1080p@25fps. CVI: 1080p@30fps, 1080p@25fps,
CVBS: PAL/NTSC
Menu
Image Mode: STD/HIGH-SAT
Noise Reduction: 2D DNR
Automatic Exposure: WDR/BLC/HLC/Global
D/N Mode: Auto/Color/BW (Black and White)
AGC: Yes
Language: English
Function: Brightness, Sharpness, Smart IR
White Balance: Auto/Manual
Interface
Video Out: 1 HD analog output
General
Material: Plastic
Operating Conditions: -40 °C – 60 °C (-40 °F – 140 °F)
Humidity 90% or less (non-condensing)
Power Supply: 12 VDC±25%
Power Consumption: Max. 2.2 W
IR Range: Up to 20m
Communication : HIKVISION-C
Dimension: Φ89.9 × 70.1 mm(Φ3.54″ × 2.76″)
Weight: 130 g (0.29 lb)
